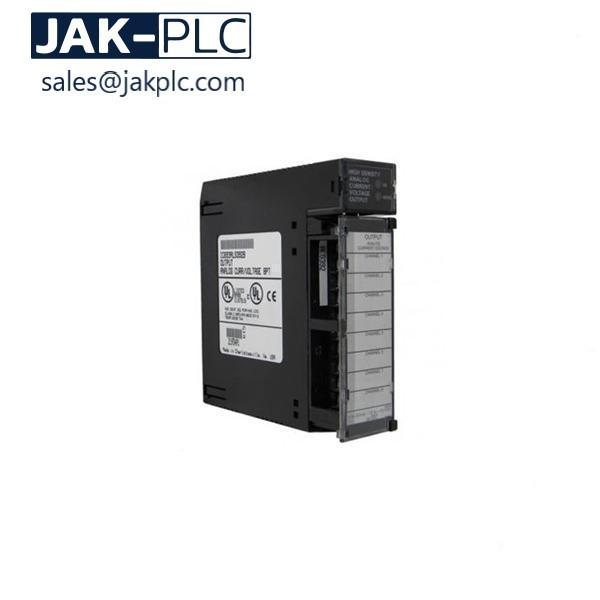

IC200CHS022L | GE Fanuc VersaMax compact box-style I/O Carrier
brand:
GE Fanucitem no:
IC200CHS022Lpayment:
T/T, Western Union, Credit Cardproduct origin:
USAgood stock:
11.0shipping port:
Dammamlead time:
1-3dayscondition:
Brand New And Originalwarranty:
1 Yearscertificate:
COOdescription:
1 Year Warrantyproduct type:
VersaMaxGE IC200CHS022L Input Output I/O Carrier
IC200CHS022 is a compact box-style I/O Carrier manufactured by GE Fanuc for the GE Versamax series. The module has 36 IEC box-style terminals. It supports backplane communications, mounting, and field wiring for one Input/Output module and can provide wiring for up to 32 I/O points and four common power connections.
Other features of IC200CHS022 include easy-keying dials that assist in installation; keys that are set to match the keying at the base of the module; male-female connectors that facilitate quick installation of the backplane connection eliminating the need for additional tools/cables; a module latch hole that fastens the module securely to the carrier; and a foldable printed wiring card that can be inserted in the inbuilt card holder.
The IC200CHS022 easily snaps onto a 7.5 mm x 35 mm DIN rail. To provide EMC protection, the DIN rail must be electrically grounded. The rail must have a conductive corrosion-resistant finish, preferably a plain finish with no paint. For those applications requiring maximum resistance to mechanical vibration and shock, the carrier must also be panel-mounted.
The IC200CHS022 is equipped with a card holder that pivots the terminal wiring. The wiring card provided with the I/O module can be inserted in the holder. During system operation, the cardholder should be pulled back.
Note
Previous versions of this power supply had five terminals on the terminalblock. The new version (shown above), which has six terminals, isfunctionally the same as the previous version. The change was made toconform to European EC requirements.
